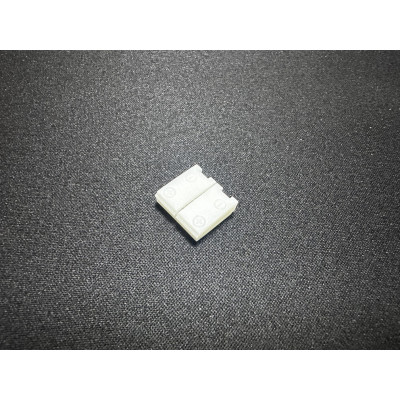

Addressable LED strip quick connector, 10mm, Straight, 3P
Allows quick and safe joining of two 10mm addressable LED strips, for straight line extension without soldering. Compatible with WS2811, WS2812B, WS2813 and SK6812, has 3 pins for signal and power, operates at 5V, 12V or 24V. PVC housing ensures stable fixation and easy connection by closing with a lid.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Special quick connector for joining two WS2811, WS2812B, WS2813 and SK6812 LED strips with a width of 10mm, compatible with 5V, 12V and 24V supply voltages.
The connector is made of PVC plastic on the outside and integrates 3 pins for connection to the LED strip.
This connector is of the Straight type, which allows easy extension of the LED strip in a straight line.
With 3 pins, it is suitable for addressable strips. If silicone tape is used, the connection requires removing the silicone to expose the tape and copper contacts.
Specifications:
Connector type: I-shape (right)
Available pins: 3PIN
Compatibility: WS2811, WS2812B, WS2813, SK6812 5050 SMD RGB
Supported voltage: 5V, 12V, 24V
LED Strip Width: 10mm
Outer material: PVC plastic
Use:
Open the connector cover and insert the LED strip into the slot.
Correctly align the contacts (+ and -) of the strip with those of the connector.
Close the lid until it is securely fastened.
For waterproof LED strips, remove the silicone layer from the contact area before connecting.
Pull the tape gently to check for proper fixation.
Used with addressable strip, pay attention to the current direction marked on the PCB when connecting (arrows).
