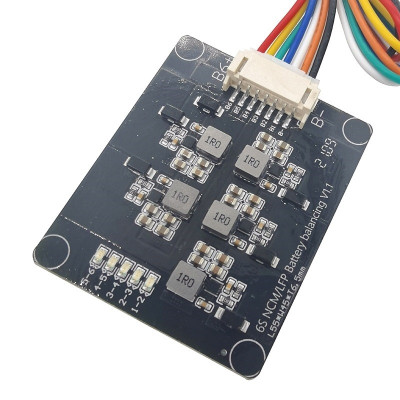

Active balance module, Lithium, 6S, 1.2A
Allows rapid cell equalization in 6S packs up to 25.2V, through active balancing with energy transfer between cells, without heat dissipation. Provides balancing current up to 1.2A for larger differences between cells, improving battery autonomy and life. Compatible with 2-4.5V cells, including Li-Ion and LiFePO4, easy connection via XH-2.54 7P connector.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The module for active balance between Lithium cells that allows the equalization of the cells in the 6S type battery packs (6 in series) with a total voltage of 25.2VDC.
The difference between this module and other modules that balance passively (discharge cells through heat), the module with active balance does not produce heat but transfers energy directly between cells. This allows equalization with a current of up to 1.2A without generating heat. It is compatible with any batteries that have a voltage per cell between 2 and 4.5VDC, from Lithium-Ion cells to LiFePo4 and others.
Specifications:
Working voltage per cell: 2 - 4.5VDC
Balancing current: 0.5A at a difference of 0.1V between adjacent cells, 1.2A at a difference greater than 0.2V between adjacent cells
Compatibility: 6S
Plug: XH-2.54, 7P
Pins:
B-: 0V
B1: 4.2V or the positive pole of the first cell
B2: 8.4V or the positive pole of the second cell
B3: 12.6V or the positive pole of the third cell
B4: 16.8V or the positive pole of the fourth cell
B5: 21.0V or the positive pole of the fifth cell
B6: 25.2V or the positive pole of the sixth cell
Produs destinat utilizarii in proiecte electronice, automatizari, prototipare, educatie si cercetare.
Produsul trebuie utilizat numai conform specificatiilor tehnice mentionate in descriere si/sau in documentatia produsului.
Avertismente generale de siguranta:
Nu utilizati produsul la tensiuni, curenti sau temperaturi peste valorile specificate.
Montajul si conectarea trebuie realizate de persoane cu cunostinte tehnice minime in domeniul electric/electronic.
Evitati scurtcircuitele, inversarea polaritatii si conectarea gresita a alimentarii.
Nu lasati produsul alimentat nesupravegheat in timpul testelor.
Produsul nu este jucarie si nu este destinat copiilor.
Pentru modulele electronice, se recomanda utilizarea in carcase, panouri sau montaje protejate, dupa caz.
Identificare produs:
Denumirea produsului, codul/SKU-ul si caracteristicile tehnice sunt mentionate in pagina produsului si/sau pe eticheta ambalajului.
Producator / Importator / Distribuitor:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Website: www.sigmanortec.ro
Persoana responsabila in UE:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Documentatie si siguranta:
Pentru informatii suplimentare, fise tehnice, declaratii de conformitate sau instructiuni, ne puteti contacta la [email protected].
Reviews (1) - Review moderation
Este un modul de echilibrare activ de tip inductiv care face egalizarea incarcarii si descarcarii acumulatorilor Li ion cu un curent de 0.5 -1Amper destul de mare fata de un BMS cu egalizare clasic care face echilibrarea cu 0.04 -0.06 Amperi.Are in compunere 5 integrate similar ETA 3000,fiecare se ocupa de 2 celule alaturate, echilibrand intretesut toate celulele ,6 in cazul de fata.Din pacate modulul primit are integratul nr1 defect si pot sa-l folosesc doar ca modul 5 serie in loc de 6 serie.Partea excelenta a modulului 6 serie este ca poate fi folosit ca 2s 3s 4s 5s 6s.
