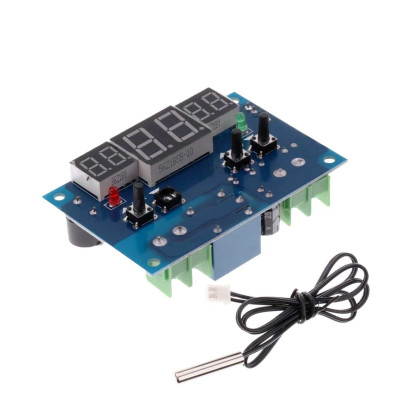

XH-W1401 thermostat module, heating-cooling, temperature control, 9-15VDC
Electronic thermostat for automatic heating or cooling control, ideal for DIY projects, incubators, display cases or ventilation. Operates at 9-15VDC and controls loads via a 10A relay at 220VAC. Triple display with actual temperature and on-off thresholds, range -9 to 99C with 1C accuracy. Red and green LEDs indicate relay status.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Smart thermostat module with temperature control, XH-W1401, power supply between 9 and 15VDC, with standard relay that can withstand 220VAC and 10A. The module can work in both heating and cooling mode.
In the Heating mode, the start and stop temperatures are set. When the detected temperature is lower than the minimum threshold, the relay is activated. When it reaches the set maximum temperature, the relay is deactivated.
In Cooling mode, if the detected temperature is lower than the minimum threshold, the relay is deactivated. When it reaches the set maximum temperature, the relay is activated.
The module has a light indicator (Red and Green LED) that indicates the status of the relay). The display is one that allows viewing both the measured temperature and the set minimum and maximum temperature, being composed of a larger display for the real temperature and two tube displays for the set temperature range.
Display with three LEDs for the measured temperature, start temperature and stop temperature. The temperature measurement range is -9~99℃.
Automatic heating or cooling depending on the set temperature.
Status LEDs - red and green - indicating the closing or opening of the relay depending on the desired temperature.
Specifications:
Supply voltage: 9 - 15VDC
Temperature range: -9~99℃
Accuracy: 1℃
Refresh rate: 0.5 s
Working temperature: -10~60℃
Sensor type: NTC (3950~10K 1%), waterproof sensor
Output type: relay
Dimensions: 78 * 51 * 18mm
