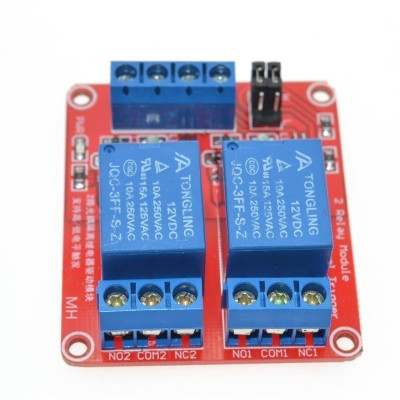

Relay module with optocoupler, High or Low level selectable, 2 channels, 5V
Quickly control AC or DC loads from Arduino and other development boards, with optocoupler isolation for safe control. It has 2 channels, selectable High or Low trigger via jumper, 5V power and logic level, 10A relays at 250VAC or 30VDC. Green LED for power and red LED for activation give you immediate visual confirmation.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Relay module with optocoupler for isolation, selectable High or Low level, 5V logic voltage, compatible with Arduino and other development boards.
The module has two LEDs, one green to indicate the On state and another red to indicate the Active state.
Specifications:
Supply voltage: 5VDC
Logic voltage: 5VDC
Trigger current: 5mAh
Number of channels: 2CH
Level: HIGH and LOW, selectable by jumper
Relay: 250VAC/10A, 30VDC/10A
Dimensions mm: 50 x 26mm
Interface:
DC+: 5VDC power supply
DC-: GND
IN1: Trigger, signal 1
IN2: Trigger, signal 2
NO1: Normally Open
COM1: Commun
NC1: Normally Closed
NO2: Normally Open
COM2: Commun
NC2: Normally Closed
