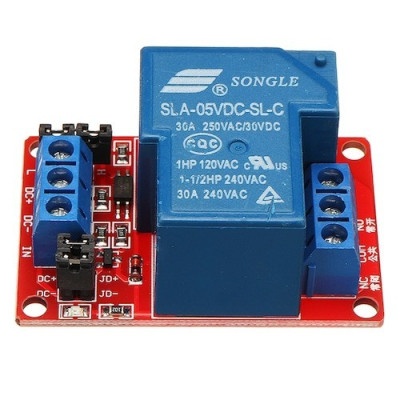

Optocoupler relay module, 1 channel, 5V, 30A, adjustable level
Ideal for controlling large loads from Arduino, ESP32 or PLC, this optocoupler relay module provides isolation between logic and power for safer control. It supports up to 30A at 240VAC, accepts 3.3-5V signal and allows setting the trigger to High or Low via jumper. It has a green LED for power and a red LED for relay status, plus mounting holes for easy attachment.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Relay module with optocoupler, one channel, High or Low Level actuation, 5V and 30A.
This relay is NO (Normally Open), i.e. Normally Open and differs from other relay modules due to the optocoupler and the possibility of setting the trigger at High or Low level via a jumper.
It has two status indicator LEDs: Green to signal power, Red to indicate relay status.
It has 3.1mm screw mounting holes, 4 in total, at a distance of 44.5 x 27.5mm
Specifications:
Supply voltage: 5VDC
Signal Voltage: 3.3 - 5VDC
Standby consumption: 5mA
Work consumption: 190mA
Relay trip current: 2 - 4mA
Relay rating: 240VAC
Current: 30A Maximum, 16A recommended
Action: Low Level - High Level, selectable by positioning the jumper in the appropriate position
Weight: 36g
Dimensions mm: 50 x 33 x 24mm
Pins:
Power pin: DC+
Minus pin: DC-
Signal pin: IN
Voltage pin: JD+
Negative voltage pin: JD-
Details:
