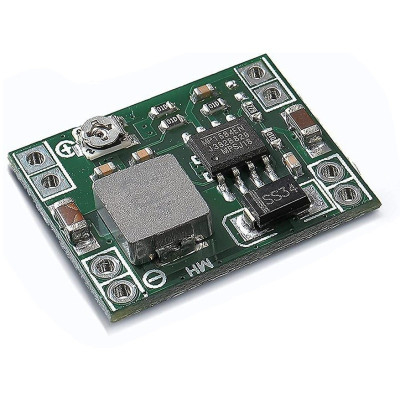

Step-down module, MP1584, 4.5-20V to 0.8-20V, adjustable, 3A
Ultra-compact DC-DC buck converter for voltage reduction in DIY projects, drones, RC models and portable equipment, accepts 4.5-28V input and provides 0.8-20V adjustable via potentiometer, delivers up to 3A with high efficiency, fast switching for low ripple, dual connection pads on input and output for safe wiring.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Ultra-small DC-DC step-down (buck) module, ideal for DIY projects and applications where size and weight are essential, such as model airplanes or portable equipment.
It allows precise adjustment of the output voltage via an accessible potentiometer that can be adjusted with a screwdriver, offering flexibility in adapting the voltage to the specific requirements of the powered device.
The connection pads, both input and output, are doubled.
Specifications:
Input voltage: 4.5V - 28VDC
Output voltage: 0.8V - 20VDC
Output current: 3A MAX
Chip: MP1584 compatible
Conversion efficiency: 92%
Output ripple: Less than 30mV
Switching frequency: 1.5MHz (high), typically 1MHz
Operating temperature: -45°C - +85°C
Dimensions: 22 x 17 x 4mm
Color: Green or Black
- tension
- AD
- Supply Voltage
- 4
- Maximum Input Voltage
- 28
- Minimum Output Voltage
- 1
- Maximum Output Voltage
- 20
- Source Type
- descend
- Current Adjustment
- Not
- Voltage Adjustment
- Yes
- Adjustment Type
- Variable
- Maximum Output Current
- 3
