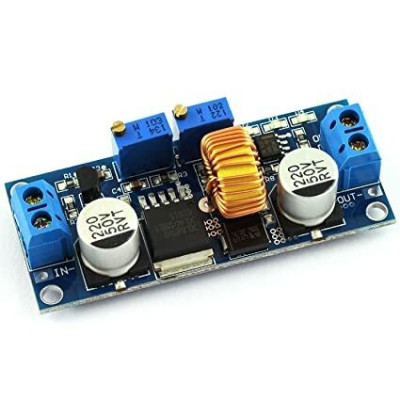

Step-down module, CC-CV, XL4015, 1.25-36VDC, 0-5A, 75W
CC-CV step-down module for precise voltage and current regulation, ideal for battery chargers and constant current LED power supply. Offers adjustable output 1.25-36V and 0-5A up to 75W, stabilization in CV mode or limiting in CC mode, thermal and short-circuit protection, compact format for quick integration into projects.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Step-down voltage and adjustable current module, suitable for making a lithium battery charger and other projects that require voltage and current control. The module features CC and CV functions.
The module can be used as:
- General step-down module with overcurrent protection
- Lithium, Ni-Mh, etc. battery charger... As a battery charger, once the "float" voltage is set, the LED indicator will signal the completion of charging.
- Constant current power supply for LEDs
Specifications:
Input voltage: 6 - 38V (under no circumstances should the voltage exceed 38V, recommended below this for safety)
Adjustable output voltage: 1.25 - 36VDC
Adjustable output current: 0 - 5A
Output power: 75W
Thermal protection: Yes
Current limiting function: Yes
Output short circuit protection: Yes
Reverse polarity input protection: NO (if necessary, insert a diode on the input)
Dimensions mm: 61.7 x 26.2 x 15mm
- tension
- AD
- Supply Voltage
- 6
- Maximum Input Voltage
- 38
- Minimum Output Voltage
- 1
- Maximum Output Voltage
- 36
- Source Type
- descend
- Current Adjustment
- Yes
- Voltage Adjustment
- Yes
- Adjustment Type
- Variable
- Maximum Output Current
- 5
