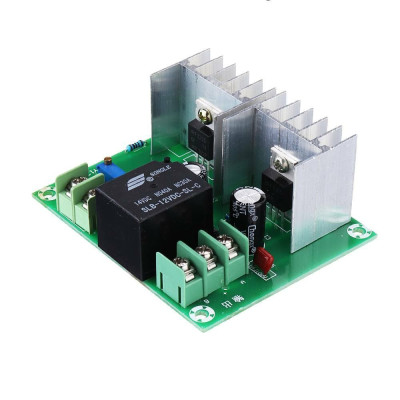

Driver module 12V to 220VAC, 300W, 50Hz, Flat Wave type
Flat Wave inverter driver module, 12VDC power supply, designed to drive a 12V-0-12V mid-tap transformer to obtain 220VAC at 50Hz. Supports transformers up to 300W, has compact dimensions of 80 x 65 mm and 35 mm radiator for efficient heat dissipation, ideal for off-grid applications and battery power supplies.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Specifications:
Power supply voltage: 12VDC
Output voltage: connected with a "Center Tap" (https://en.wikipedia.org/wiki/Center_tap) to 12V + 12V
Maximum transformer power used: 300W
Dimensions mm: 80 x 65mm

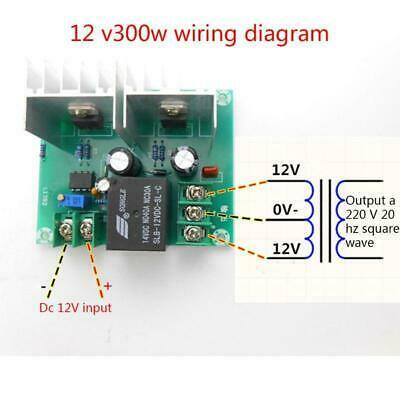

Applicable transformers: steel core transformer 220V Variable 12V ~ 0 ~ 12V; 12V-0-12V connect circuit board port (A + B), power port (input) connect the battery, you can output AC 220V, radiator height 35mm!
Attention! The module does not output 220VAC from 12V!
