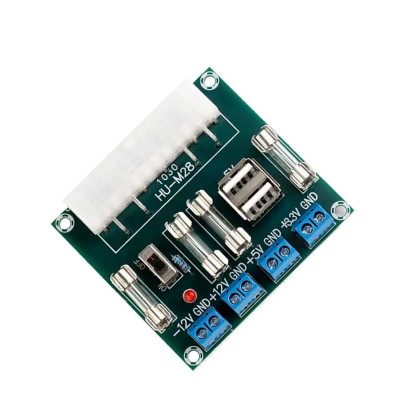

ATX 24-pin to terminal adapter module, with USB
Quickly transform a standard ATX power supply into a versatile power supply for electronic projects, offering 4 groups of 12V, 5V and 3.3V outputs, plus USB 2.0 port with up to 5A for charging or stable power supply. It has ON OFF switch and power indicator, individual fuses on outputs, compatible with 24-pin ATX connector and some BTX.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
24-pin ATX adapter module with USB interface, designed to convert a standard ATX power supply into a versatile power supply with multiple voltage outputs. The device includes 4 groups of outputs with different voltages, together with a USB interface capable of providing a current of up to 5A, ideal for charging mobile devices or powering electronic projects that require a robust USB power source.
It is equipped with a toggle switch for easy on/off and a power indicator and is compatible with both ATX and some BTX ports, providing excellent flexibility for a variety of applications.
An important aspect to remember is that, in the case of power sources with a 20-pin port, the adapter must be inserted carefully, taking as a reference the marking on the circuit board. It is also essential to understand that -12V voltage is not supported for charging or direct use, this being provided exclusively by the computer's motherboard, and the logical potential provided by the module is approximately 300mA.
Each output has its own fuse that can be changed.
Be sure to closely monitor heat dissipation when using the module for applications that require near-maximum current, and take appropriate cooling measures if necessary. Avoid overloading the module to prevent damage to it or connected devices.
Specifications:
Port compatibility: ATX (and some BTX)
Number of PINS: 24PIN
Number of Output Groups: Four
Output voltages: 12VDC, 5VDC, 3.3VDC
USB interface: 2.0, Output current 5A
Switch: Yes, with toggle function, ON/OFF
Power Indicator: Yes, to indicate power status
Restrictions: -12V is not supported for charging/use. Logical potential of approximately 300mA
Safes: Yes, on each exit
Dimensions: 70 x 70mm
Use:

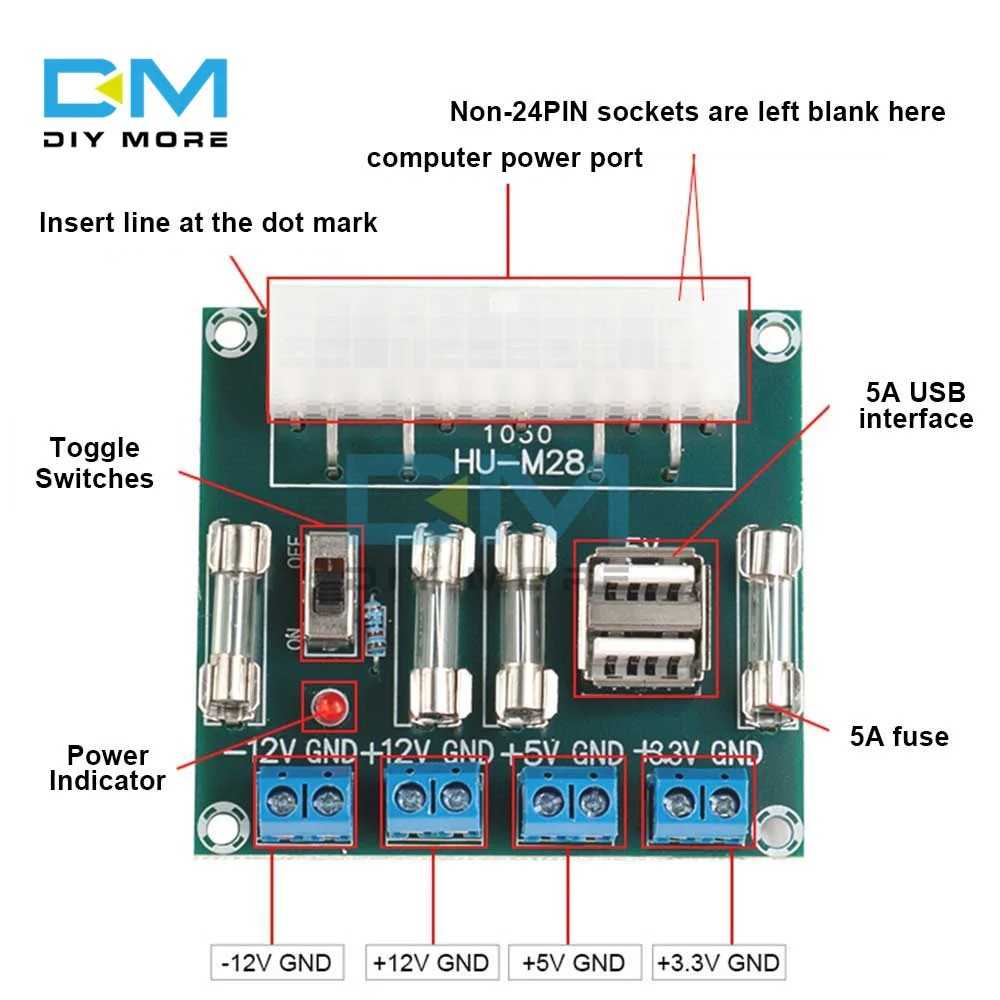

Make sure your power supply has a 24-pin port. If the source has a 20-pin port, connect the adapter starting from the dotted marking on the circuit.
Insert the adapter into the 24-pin port of the ATX/BTX power supply.
Use the switch to turn the power on or off. The power indicator will show you if the module is powered.
You can charge mobile devices or power other projects that require a USB output through the 5A interface available on the module.
Connect devices or projects that require different voltages to the corresponding output groups of the module.
