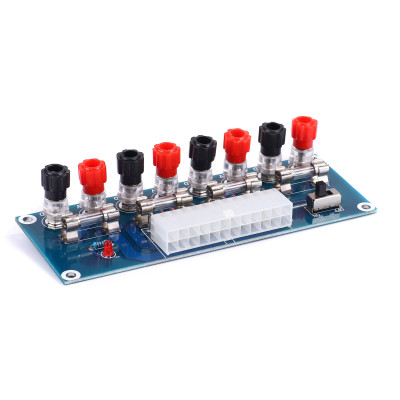

Desktop ATX Power Supply Terminal Module, XH-M229, 24-pin
Quickly transforms a desktop ATX power supply into a power terminal for testing and projects, with 24-pin input and screw-clamp outputs. Provides four common voltage lines -12V, +12V, +5V and +3.3V, each with GND, dedicated glass fuses, on-board ON/OFF button and status LED for quick check.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
ATX Desktop PC module, with 24-pin plug input, screw-tight output terminals, each provided with a dedicated glass fuse and ON/OFF button present on the board.
There are 4 supply groups of two pins each (Positive and Negative), with different values.
Power status LED present on the PCB.
Specifications:
Compatibility: ATX and partially with BTX
Number of pins: 24
Switch: Yes, On/Off
Voltage groups: 4 sets
Dimensions mm: 128 x 48mm
Groups:
1: -12V, GND
2: +12V, GND
3: +5V, GND
4: +3.3V, GND
