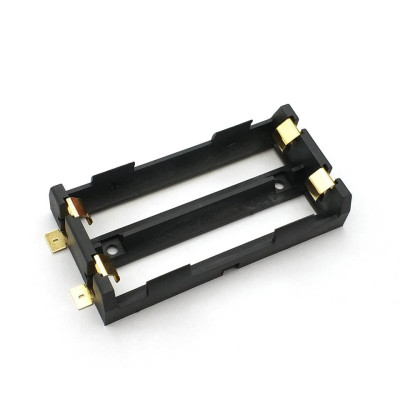

2 x 18650 battery holder, SMD, SMT, bronze pins
Allows quick PCB mounting of two 18650 batteries in electronic projects, compatible with SMD SMT assembly, 0.3 mm plated steel contacts for good conductivity, durable ABS housing, polarity clearly marked on the support for correct connection.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The holder for 2 18650 batteries with PCB mounting is a practical and safe solution for integrating power supply into electronic projects, DIY assemblies, portable equipment, or light industrial applications.
It allows the use of two 18650 cells and offers flexibility in configuration, as the cell pins are not internally connected, making it possible to assemble them either in series or in parallel, depending on the circuit requirements.
The metal contacts are 0.3 mm thick, plated for optimal conductivity, and made of steel, contributing to a stable and reliable connection. The ABS casing ensures good mechanical strength, and the battery polarity is printed directly on the holder for correct and quick installation.
Specifications:
Material: ABS
Supported batteries: 18650
Number of batteries: 2
Mounting type: on PCB
Possible configuration: series or parallel
Cell pin connection: not internally connected
Contact material: steel
Contact thickness: 0.3 mm
Contact finish: plated
Dimensions: 77 x 40 x 15 mm
Usage:
The holder is mounted directly on the PCB according to the desired project. Since the terminals are not internally connected, the electrical configuration in series or parallel is made directly through the PCB tracks. Contacts can be soldered with solder wire or spot welded. It is recommended to use compatible 18650 batteries and to firmly check the contacts to ensure correct power supply and safe circuit operation.
