USB Type-C tester, 50V, 12A, Color LCD screen, round, touch

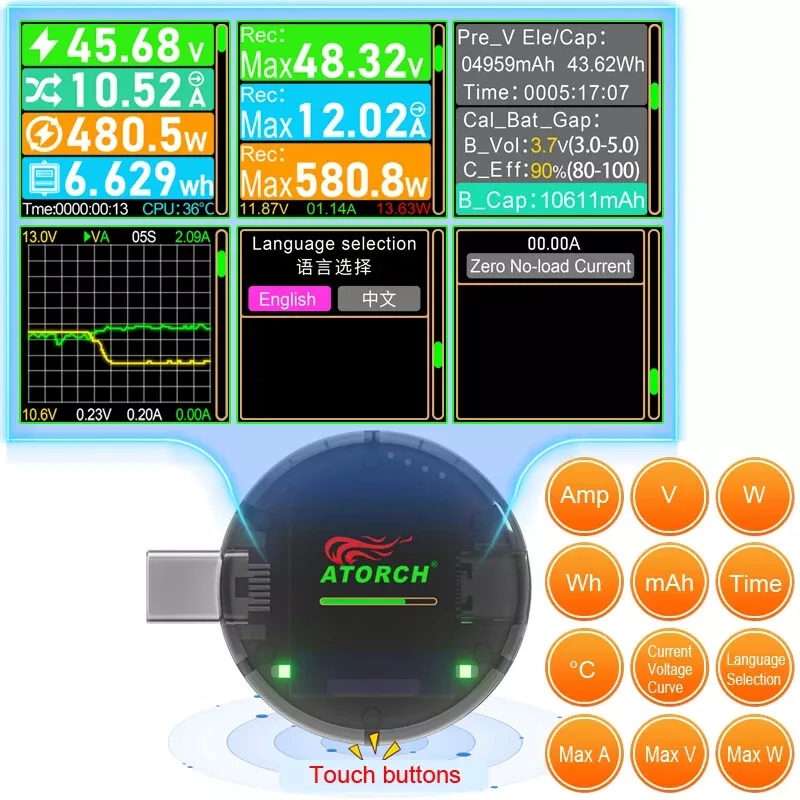

Compact USB Type-C tester for precise charging monitoring, displays real-time voltage, current, power and CPU temperature. The round IPS HD color screen is touch-sensitive and automatically rotates for easy viewing. Supports up to 50V with PD3.1 and current peaks up to 12A, ideal for checking chargers, power banks and USB-C cables. The internal memory can save up to 1 million records.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Compact USB Type-C tester for precise monitoring of voltage, current, power and CPU temperature while charging electronic devices. Features a rotating (automatic) round IPS HD color screen with touch button. Ideal for testing chargers, power banks, USB-C cables and other equipment using the Type-C standard.
The device supports bidirectional current up to 6A and provides accurate voltage measurements between 4.5V and 50V (48V voltage is provided via PD3.1) and peak current up to 12A. The internal memory allows storage of up to 1 million data sets. It has advanced functions such as dual parameter curve pausing, display of power consumption, battery capacity and battery level.
Menu navigation is easily achieved via a single touch button (touch on the side of the case) through combinations of single, double or long presses.
The display orientation is done automatically, depending on the orientation, by using an integrated accelerometer.
Specifications:
Measured voltage: DC 4.5–50V
Charging Standards: From USB 5V to PD3.1 capable of 48V
Measured current: 0–6A (peak 13A)
Screen: IPS HD color, touch, rotating
Temperature measurement: Internal CPU temperature
Displayed power: 0–600W
Displayed capacity: 0–9999mAh
Battery level displayed: 0–9999Wh
Sampling resistance: 0.001Ω
Bidirectional current: up to 12A
Own consumption: < 0.15W
Data storage: up to 1 million records
Communication protocol: CC1, CC2, D+D- (PD3.1)
Compatibility: Type-C 16P PD3.1 (C male and C female plug)
Working temperature: 0°C – 45°C
Dimensions: 43mm × 36mm × 10mm
Weight: 8g
Use:
Connect the tester between the USB Type-C power source and the device to be charged.
The screen will automatically activate and display in real time the values of voltage, current, power, temperature and other relevant parameters.
Use the curve pause function to analyze values at a specific time.
The touch button works by touch and a short press switches between information pages. A long or double tap allows you to change settings. A quick 3-tap resets the counter.
