Synchronous controller 6-42V LM25116

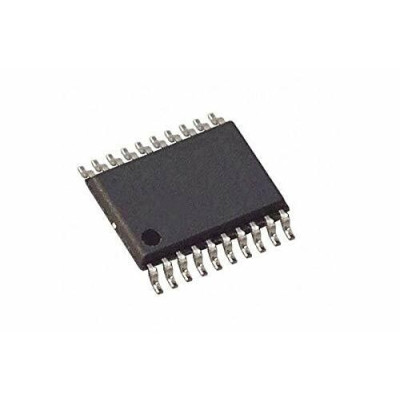

Name: Synchronous controller 6-42V LM25116
SKU: 33461
Price: 15.19 RON
Availability: InStock

Synchronous buck controller for power supplies up to 42V, ideal for industrial and automotive applications, offers current mode control with emulated ramp for stability and low noise, programmable frequency 50 kHz–1 MHz, external high/low MOSFET control with adaptive dead-time, includes current limit, soft-start and undervoltage protection.

15.19 RON Tax included

12.55 RON Tax excluded

No reviews yet

1-2 zile

Shipping by Thursday 27 August

This product has a warranty of 2 years.

INTERNATIONAL DELIVERY
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.

FAST DISPATCH 24H
We ship from our stock within 24H

LOYALTY POINTS
You earn points with every order, worth 5%.

LM25116 is a synchronous controller designed for step-down applications from a high voltage or a wide variety of sources. The control method is based on current control using an emulated current ramp. Current mode control ensures inherent line feed, cycle-by-cycle current limiting, and easy loop compensation. Using an emulated control ramp reduces noise sensitivity of the pulse-width modulation circuit, allowing reliable control of very small duty cycles required in high input voltage applications.

The operating frequency is programmable from 50 kHz to 1 MHz. The LM25116 drives external high-side and low-side power NMOS switches with adaptive dead time control. A user-selectable diode emulation mode allows continuous operation for improved efficiency under light load conditions.

Additional features include a high-voltage bias regulator, automatic switching to external bias for improved efficiency, thermal shutdown, frequency synchronization, cycle-by-cycle current limit, and adjustable line undervoltage lockout. The device is available in a 20-pin HTSSOP package with an exposed pad at the base to assist thermal dissipation.

Specifications:

Emulated Peak Current Mode

Wide Operating Range (Up to 42 V)

Low IQ Shutdown (< 10 μA)

Drives Standard or Logic Level MOSFETs

Robust 3.5-A Peak Gate Drive

Free-Run or Synchronous Operation to 1 MHz

Optional Diode Emulation Mode

Programmable Output From 1.215 V to 36 V

Precision 1.5% Voltage Reference

Programmable Current Limit

Programmable Soft Start
