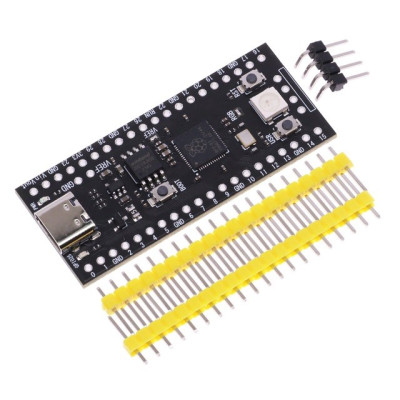

Pi Pico compatible development board, Raspberry RP2040, 16MB Flash, Type-C, Cortex M0+
The Pi Pico compatible development board with RP2040 is ideal for rapid prototyping and IoT projects, offering 16MB Flash for more complex applications, modern USB Type C connectivity for power and programming, addressable WS2812 RGB LED, and Reset and User buttons for easy testing. It supports C, C++, MicroPython, and CircuitPython programming, in a compact form factor.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The Pi Pico compatible development board, equipped with the Raspberry RP2040 chip, brings a new dimension to the world of electronic projects. With an extended flash memory of 16MB and a compact design, this board offers a versatile and powerful solution for electronics enthusiasts and developers of innovative projects.
It offers integrated addressable RGB LED with WS2812, Reset button and User button.
It integrates a W25Q32 chip for 16MB flash memory, compared to 2MB available on the official board and SWD debug pins.
The USB connection is with a Type-C connector.
Specifications:
Supply Voltage: 5VDC via USB Type-C
Operating voltage (logic): 3.3V
Chip: RP2040, with ARM Cortex M0+ core
Operating frequency: Up to 133MHz
RAM memory: 264KB
Flash Chip: W25Q32
Flash memory: 16MB (SPI Flash)
GPIO: 26 programmable digital pins
Support for I2C, SPI, UART, Timer, PWM and others
Features: 2 x SPI, 2 x I2C, 2 x UART, 4 x 12bit ADC, 16 PWM channels
Clock and timer: precision, integrated
Temperature sensor: Yes
FP (Accelerated Floating-Point): Yes
Peripheral I/O (PIO) support: 8, programmable
Pre-written firmware: MicroPython
USB connector: MicroUSB for power and programming
Compatibility with C/C++, MicroPython and CircuitPython programming languages
Dimensions: 53 x 22mm
Pinouts:
Firmware Update Procedure:
1. Connect the USB Type C cable to the computer and to the board.
2. Long press the BOOT button.
3. Press the RST button.
4. Release the BOOT button after one second
5. The computer will recognize the card as an external storage unit.
6. Copy the file with the program to the storage unit related to the board, following that the board restarts.
