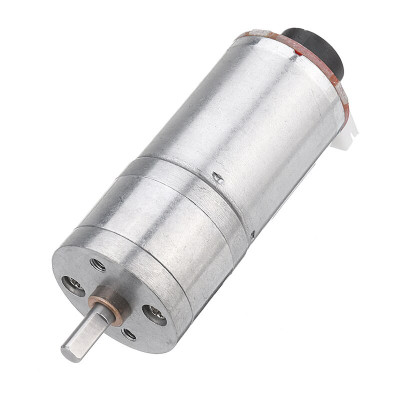

Motor with gearbox and encoder, 25GA370, 6VDC, 170RPM
6VDC geared motor with 2-channel Hall encoder, ideal for projects with Arduino and other boards, allows speed control via PWM with H-bridge and precise reading of speed and direction. Offers 170 RPM, torque up to 1 kg cm, 4 mm D-type shaft for secure mounting, operates in both CW and CCW directions.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Gear motor at 170 rotations per minute and encoder that can be used together with Arduino or other development boards, along with an H-bridge to control the motor speed via PWM and to read data from the built-in encoder.
BEFORE CHANGING THE ROTATION DIRECTION, ALWAYS MAKE SURE THE MOTOR IS STOPPED. OTHERWISE, IT WILL BE DAMAGED.
The motor can also rotate in any direction.
The motor uses a Hall-type encoder with 2 channels, sensors arranged asymmetrically, which can be read on the 2 signal wires. The received data can be interpreted in the software used.
Specifications:
Supply voltage: 6VDC
Power: 3W
Speed control: Yes
Rotation: CW, CCW
Shaft diameter: 4mm
Length mm: 142mm
Shaft length: 9.8mm
No-load current consumption: 0.1Ah
Torque: 1Kg/cm
Speed: 170rpm
Load current consumption: 2.6Ah
Shaft shape: D
Wire specifications:
| Color | Function |
|---|---|
| Red | Motor + |
| Black | Encoder - |
| Yellow | Encoder A Phase |
| Green | Encoder B Phase |
| Blue | Encoder + |
| White | Motor - |
