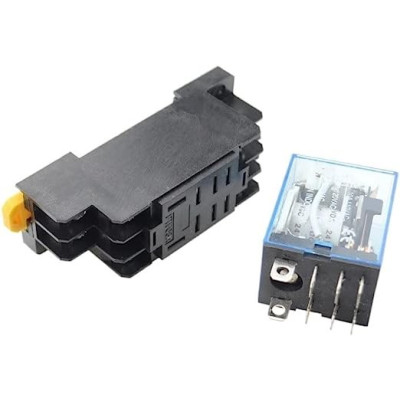

Electromagnetic relay, LY2N, 24V, 10A, 8 pins, with socket, rail mount
Ideal for automation and control panels, quickly and safely switches loads up to 10A at 250VAC on 24VDC command. Includes socket for easy connection and replacement, DIN rail mount for quick installation, 8 pins with 2 NO and 2 NC contacts for flexibility, robust construction for reliable operation in industrial environments.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
LY2N is a high-quality electromechanical relay, equipped with a socket and rail mount, facilitating installation and use in an industrial environment. It provides fast and safe switching of electrical loads, such as motors, solenoids, lighting and other control devices, depending on the command signals received.
Specifications:
Working voltage: 24VDC, coil voltage
Switching capacity: 10A, 250VAC
Coil power: 1.2W
Pins: 8 pins, 2 normally open, 2 normally closed
Pull-in voltage: <80% (V)
Contact release voltage: 10VDC
Contact resistance: <50mΩ
Insulation resistance: <100mΩ
Action and reset time: 20ms
Mechanical and electrical operating frequency: 18,000 cycles per hour
Dimensions mm: 27.5 x 21 x 35.3mm
Features:
Pin configuration: The LY2N relay has 8 pins available for connections and auxiliary connections. This includes pins for coil control, main contacts and auxiliary contacts.
Socket: This relay is equipped with a socket, which makes it easy to mount and connect it to a system. The socket also provides additional protection against shock and vibration, contributing to the durability and stability of the connections. The relay can also be changed very easily.
Rail mounting: The LY2N relay can be mounted on a standard mounting rail, providing quick and easy installation in control panels or electrical cabinets.
Durability: This relay has a robust construction and is designed to withstand rigorous working conditions and voltage fluctuations. It is able to withstand shock and vibration, ensuring long-term reliable operation.
Wide Use: LY2N is used in a variety of applications such as industrial automation, process control, medical equipment, security equipment and more.
Electrical diagram:
