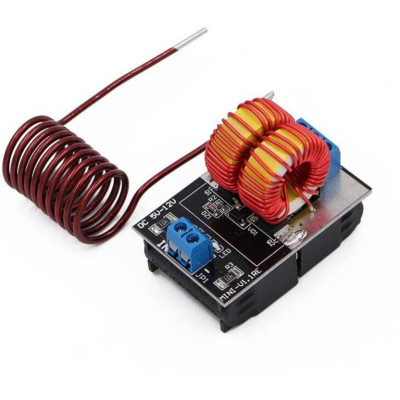

5-12V ZVS induction heating module

ZVS induction heating module for DIY projects, testing and fast heating of small metal parts. It operates at 5-12V and can deliver up to 150W at 12V with a 10A source, has a blue LED for power indication and a coil recommended for direct soldering to PCB for stable electrical contact.

46.79 RON Tax included

38.67 RON Tax excluded

(5/5) out of 3 total ratings
Read the reviews
1-2 zile
check In Stoc

Shipping by Thursday 27 August

Close

This product has a warranty of 2 years.

INTERNATIONAL DELIVERY
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
FAST DISPATCH 24H
We ship from our stock within 24H
LOYALTY POINTS
You earn points with every order, worth 5%.

Induction heating module 5-12V ZVS

Maximum power: 150W at 12V (pay attention to overheating)

At 12V, a 10A power supply is recommended

Avoid powering directly from a 12V battery.

Make sure everything is properly connected before powering on. The coil is recommended to be soldered directly to the PCB.

WARNING! The module can easily burn out if used incorrectly, so we do not take responsibility for any damage resulting from its use.


Manufacturer's note:

When using battery and battery power supply, it must be ensured that the working voltage is above 4.5V! Do not ensure that the voltage is always above 4.5V during operation, do not use battery or battery power supply! Do not use dry battery power!
The width of the heated object should be between 1/3 and 1/2 of the inner diameter of the heating coil, and the maximum should not exceed 2/3!
The diameter of the heated object should be controlled within 20mm as much as possible. If the heating is too large, it will be difficult to heat up to red. After all, the power is limited.
Inductive heating, usually work for 5 minutes to power off cooling. Because the current is relatively large during induction heating, the coil heat is also relatively large. When heated, part of the heat generated by the heated object is transmitted to the heating coil. For a long time, the temperature of the heating coil is high. If the heating coil is connected to the terminal, the plastic part of the terminal will be melted! Therefore, it is best to solder the heating coil directly to the PCB during induction heating.
For long-term use, it is recommended to use a copper tube as a coil and cool it with water.
Blue LED power indicator, there is no electricity, you can see if the light is off!
33171

Produs destinat utilizarii in proiecte electronice, automatizari, prototipare, educatie si cercetare.

Produsul trebuie utilizat numai conform specificatiilor tehnice mentionate in descriere si/sau in documentatia produsului.

Avertismente generale de siguranta:

Nu utilizati produsul la tensiuni, curenti sau temperaturi peste valorile specificate.

Montajul si conectarea trebuie realizate de persoane cu cunostinte tehnice minime in domeniul electric/electronic.

Evitati scurtcircuitele, inversarea polaritatii si conectarea gresita a alimentarii.

Nu lasati produsul alimentat nesupravegheat in timpul testelor.

Produsul nu este jucarie si nu este destinat copiilor.

Pentru modulele electronice, se recomanda utilizarea in carcase, panouri sau montaje protejate, dupa caz.
