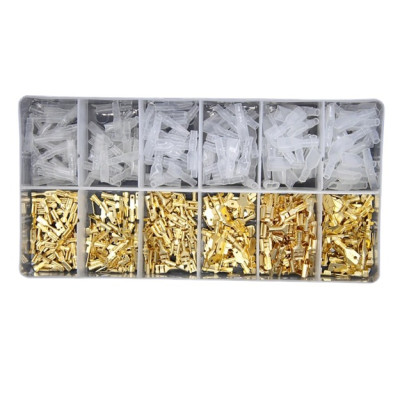

450 Insulated Spade Terminals (Fork), 2.8, 4.8, 6.3mm
The practical solution for fast and secure electrical connections in panels, automotive applications, household appliances, and DIY projects. Includes 450 insulated spade terminals, female and male, in sizes 2.8, 4.8, and 6.3 mm, with copper-plated contacts for good conductivity and corrosion resistance. The flame-retardant PVC sleeves provide protection, compatible with 0.5-2.5 mm2 cables.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The 450-piece insulated spade terminal kit is the complete solution for fast and secure connection of electrical wires in various projects and applications.
The kit includes both female and male versions, in three standard sizes: 2.8mm, 4.8mm and 6.3mm, thus covering a wide range of needs.
The contacts are made of plated copper, which guarantees excellent electrical conductivity and high resistance to corrosion over time.
The insulating sleeve of each terminal is made of flame-retardant PVC, providing additional protection and safety in use.
The kit is suitable for cable cross-sections between 0.5 and 2.5 mm² (AWG 22-14), covering most common applications.
It is ideal for electricians, electronics enthusiasts, as well as anyone who needs a varied stock of connectors for control panels, household appliances, automotive systems, DIY projects, or general electrical repairs.
Specifications:
Terminal type: Spade, female and male, insulated

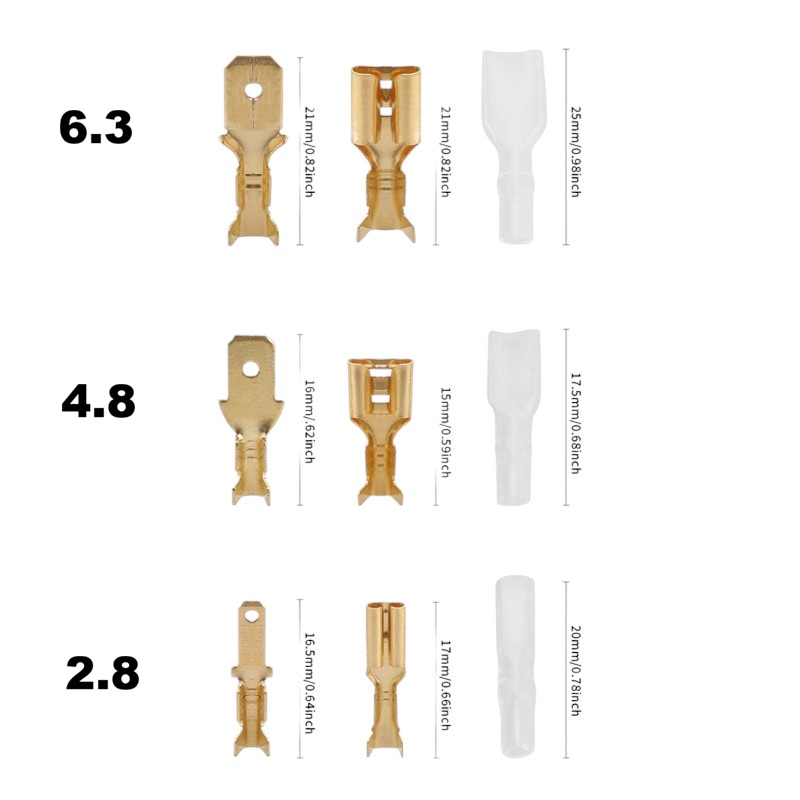

Available sizes: 2.8mm, 4.8mm, 6.3mm
Contact material: Plated copper
Insulation material: Flame-retardant PVC
Total number of pieces: 450 pieces
Recommended cable cross-section: 0.5 - 2.5 mm² (AWG 22-14)
Usage:
Select the appropriate terminal size for your cable thickness.
For cables of 0.5 - 1.5 mm² (AWG 22-16), use 2.8mm terminals.
For cables of 1.5 - 2.5 mm² (AWG 18-14), use 4.8mm or 6.3mm terminals.
Remove approximately 5 - 7 mm of insulation from the end of the cable.
Insert the stripped wire into the crimping end of the terminal.
Use a suitable crimping tool to firmly crimp the terminal onto the cable.
Check the strength of the connection manually after crimping.
Optionally, add heat-shrink tubing over the crimped area for additional protection.
Contents:
50 x male spade terminal 2.8mm
50 x female spade terminal 2.8mm
50 x male spade terminal 4.8mm
50 x female spade terminal 4.8mm
50 x male spade terminal 6.3mm
50 x female spade terminal 6.3mm
50 x insulating sleeve 2.8mm
50 x insulating sleeve 4.8mm
50 x insulating sleeve 6.3mm
