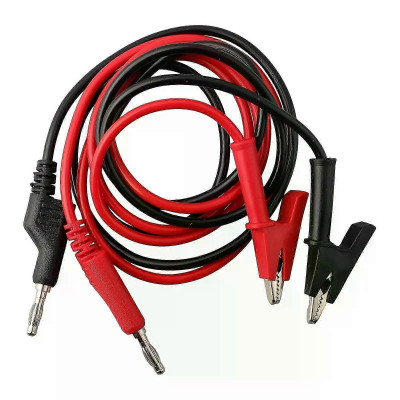

Test cables, 4 mm banana plug to crocodile clip, 1 m, 15 A, 1000 V, 2 pcs
Ideal for measurements and quick connections in circuits, this set offers a secure transition from a 4mm stackable banana plug to a crocodile clip with a firm grip. 1 m cables with flexible PVC insulation, approx. 4 mm diameter, support up to 15A and 1000V, compatible with multimeters, laboratory power supplies, and other equipment.
Shipping by Thursday 22 October
Buying this product earns you 1.86 RON in loyalty points.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
This test cable set is designed to facilitate electrical measurements and quick connections in circuits, making it a useful tool for electricians, technicians, service centers, and electronics enthusiasts. Each cable has a standard 4mm banana plug at one end, with stackable capability, allowing multiple cables to be connected to the same terminal, and an alligator clip at the other end with an opening of approximately 10mm, which clamps firmly onto terminals, wires, connectors, and component pins. The cable is 1 meter long, sufficient for comfortable use on a laboratory bench, has a diameter of approximately 4mm, and flexible PVC insulation. The cables support a maximum current of 15A and a maximum voltage of 1000V, according to the manufacturer’s data.
The set is compatible with any equipment fitted with 4mm terminals or banana jacks, such as multimeters, laboratory power supplies, signal generators, laboratory chargers, and electronic loads. It is ideal for temporarily powering projects with Arduino, STM32, ESP32 boards or other development platforms directly from a laboratory power supply, for testing modules, batteries, motors, and other components without the need to solder wires.
Specifications:
End 1: 4mm standard stackable banana plug
End 2: Alligator clip, opening ~10mm
Insulation: PVC
Cable diameter: ~4mm
Maximum current: 15A
Maximum voltage: 1000V
Cable length: 1 meter (100cm)
Usage:
Visually inspect the cables before each use and do not use cables with damaged insulation, cracks, or exposed conductors.
Make sure the equipment (power supply, multimeter, or other device) is turned off or disconnected before making connections.
Insert the 4mm banana plug into the corresponding terminal of the device, following the color code (red for positive, black for negative or COM).
Attach the alligator clip to the measurement point or circuit terminal, making sure it is firmly clamped and does not touch other nearby components or conductors.
Turn on the equipment and perform the measurement or power the circuit, without exceeding the maximum current of 15A and the maximum voltage of 1000V.
After use, turn off the equipment, first remove the alligator clips from the circuit, then unplug the banana connectors from the device.
Store the cables in a dry place, without bending or twisting them excessively, to extend the life of the insulation.
- Nominal Current
- 15 A
- Cable length
- 1 m
- Connector type
- Banana 4 mm - Clema crocodil
- Maximum working voltage
- 1000 V
- Quantity per package
- 2 buc
Produs destinat utilizarii in proiecte electronice, automatizari, prototipare, educatie si cercetare.
Produsul trebuie utilizat numai conform specificatiilor tehnice mentionate in descriere si/sau in documentatia produsului.
Avertismente generale de siguranta:
Nu utilizati produsul la tensiuni, curenti sau temperaturi peste valorile specificate.
Montajul si conectarea trebuie realizate de persoane cu cunostinte tehnice minime in domeniul electric/electronic.
Evitati scurtcircuitele, inversarea polaritatii si conectarea gresita a alimentarii.
Nu lasati produsul alimentat nesupravegheat in timpul testelor.
Produsul nu este jucarie si nu este destinat copiilor.
Pentru modulele electronice, se recomanda utilizarea in carcase, panouri sau montaje protejate, dupa caz.
