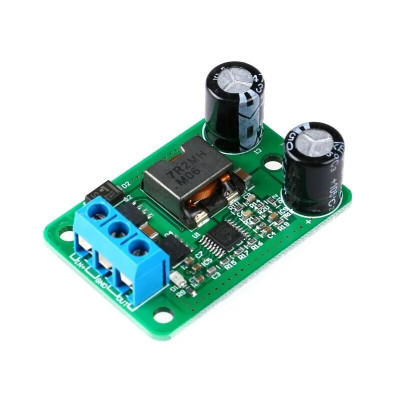

Synchronous step-down module, 9-30V to 5V, 5A, fixed
Synchronous buck converter for efficient power supply of 5V equipment from 9-30VDC sources, delivers up to 5A for consumers such as electronic boards, modules or peripherals. Offers efficiency up to 95% for reduced heating, stable fixed 5V output, synchronous rectification and reverse polarity protection, quick connection via screw terminals and common input-output GND.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Synchronous voltage reducer, designed to transform input voltages between 9 and 30VDC into a stable output voltage of 5V, with an output current of up to 5A.
ATTENTION: 35VDC is the upper limit. Use below this value, recommended up to 30V.
Being a non-isolated buck module (BUCK), it offers an efficient and reliable solution for the power supply needs of electronic devices that require a voltage of 5V. With a conversion efficiency of up to 95%, this module minimizes energy losses, being ideal for a wide range of applications.
It has protection against polarity reversal (diode) at the input, ensuring a safe and durable use of the module.
The module has screw connectors, three in number. The middle connector is common GND for both input and output.
Specifications:
Input Voltage: 9 - 30VDC (the maximum voltage limit is 35V. It is recommended to use a safety margin)
Type: Non-Isolated Buck Step-Down
Output Voltage: 5V fixed
Output Current: 5A
Output Power: 25W
Rectification Mode: Synchronous Rectification
Drop-Out Voltage: 4V
Conversion Efficiency: Up to 95%
Input Reverse Polarity Protection: Yes
Dimensions: 45 x 30 x 15 mm
Use:
Connect the positive terminal (+) of the power source to the In+ pin and the negative terminal (-) of the source to GND of the module. Make sure that the power supply does not exceed the maximum input voltage of 35V (recommended up to 30V).
Connect the positive terminal (+) of the device that requires power to the Out+ pin and the negative terminal (-) to GND of the module.
The GND pin is common for both input and output.
After the correct connection, the module will start to convert the input voltage into a stable output of 5V. Monitor the consumption so as not to exceed the 5A capacity of the module.
- tension
- AD
- Supply Voltage
- 9
- Maximum Input Voltage
- 30
- Minimum Output Voltage
- 5
- Maximum Output Voltage
- 5
- Source Type
- descend
- Current Adjustment
- Not
- Voltage Adjustment
- Not
- Adjustment Type
- Fixed
- Maximum Output Current
- 5
