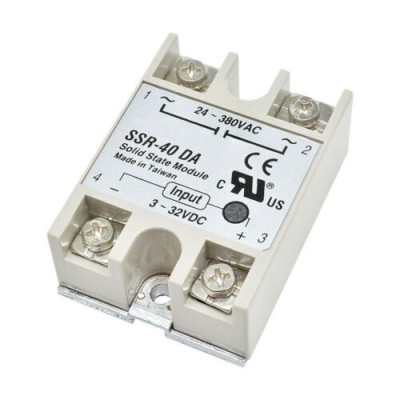

Solid State Relay SSR-40DA, 40A
40A solid state relay for fast and silent control of AC loads, ideal for automation and industrial control. Contactless switching, no sparks, zero crossing TRIAC output for reduced wear, optical isolation between input and output and status LED for easy verification. Accepts 3-32VDC control signal and load voltages up to 380VAC.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Solid state relay (SSR) of 40A power, differs from the classic relay by switching without contact, which makes it possible to actuate it without sparks and noise, with a fast switching speed.
Benefits include TRIAC output, electromagnetic isolation, fast actuation, moisture resistance, zero closing current and optical isolation between the input and output circuits.
Important: Check the temperature of the relay. With loads greater than 4A, a radiator is recommended.
Specifications:
Model: SSR-40DA
Signal voltage: 3-32VDC
Control signal current: 3 - 25mA
ON state current loss: <2mA
Supported voltage: 24 - 380VAC
Maximum load: 40A
Switching time: <10ms
Dielectric power: 2500VAC
Insulation resistance: 500M / 500VDC
Operating temperature: -30 - 75 degrees C
Installation: screws
ON status: LED
Produs destinat utilizarii in proiecte electronice, automatizari, prototipare, educatie si cercetare.
Produsul trebuie utilizat numai conform specificatiilor tehnice mentionate in descriere si/sau in documentatia produsului.
Avertismente generale de siguranta:
Nu utilizati produsul la tensiuni, curenti sau temperaturi peste valorile specificate.
Montajul si conectarea trebuie realizate de persoane cu cunostinte tehnice minime in domeniul electric/electronic.
Evitati scurtcircuitele, inversarea polaritatii si conectarea gresita a alimentarii.
Nu lasati produsul alimentat nesupravegheat in timpul testelor.
Produsul nu este jucarie si nu este destinat copiilor.
Pentru modulele electronice, se recomanda utilizarea in carcase, panouri sau montaje protejate, dupa caz.
Identificare produs:
Denumirea produsului, codul/SKU-ul si caracteristicile tehnice sunt mentionate in pagina produsului si/sau pe eticheta ambalajului.
Producator / Importator / Distribuitor:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Website: www.sigmanortec.ro
Persoana responsabila in UE:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Documentatie si siguranta:
Pentru informatii suplimentare, fise tehnice, declaratii de conformitate sau instructiuni, ne puteti contacta la [email protected].
