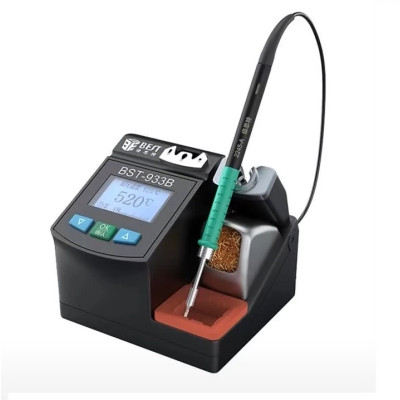

Soldering station, BST-933B, 130W, 50-520 degrees, LCD screen
Professional soldering station for electronic work, with ultra-fast tip heating in approx. 2.5 seconds and intelligent temperature control for consistent results. Offers 130W with instant boost up to 260W, range 50-520°C and high stability. It has standby sleep function and automatic hibernation, plus quick tip change even when hot, with a sensor that starts heating when the handle is lifted.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Professional soldering station with fast tip heating (around 2.5 seconds heating time), standby function and quick tip change. The source uses a pure copper transformer to ensure good operation of the station during long tinning sessions and maximum reliability over time.
It has a sensor that automatically activates the heating of the tip when the gun is removed from the socket. After inserting the gun into its own base, the station will enter Sleep mode, that is, it will lower and maintain the temperature of the tip at the temperature set for Sleep. After a long period in which the handle is not used, the station goes into hibernation, bringing the tip temperature to room temperature.
The tip is changed by simply removing and inserting it into the handle. The special fact about this station is that the tip can be changed even when it is hot, using the tool on the station. In this way, changing the tip is extremely fast and allows efficient switching between different tips, depending on the needs.
Heating is very fast due to the dual 16V power system and can reach an instant peak of 260W to heat the tip in seconds.
It uses an intelligent control algorithm to maintain the temperature within the set threshold with a response time in the order of milliseconds.
It comes with a grounding cable for electronic boards. It attaches to the plate to avoid possible damage caused by static current.
Specifications:
Supply voltage: 110 - 220VAC
Power: 130W, 260W instantaneous
Output voltage: 16V + 16V
Temperature range: 50 - 520 degrees C
Temperature stability: +- 2 degrees C (no air current and no load)
Peak to ground resistance: <2 Ohm (DC)
Peak to ground potential: <2 mV (True RMS)
Screen: Backlit LCD
Handle cable length: 1.4 meters
Dimensions mm: 150 x 135 x 125mm
Included in the package:
1x Station
1x 220VAC power cable
1x Earthing cable
1x Handle
1x Sponge
1x wire sponge
3x Heads (different)
