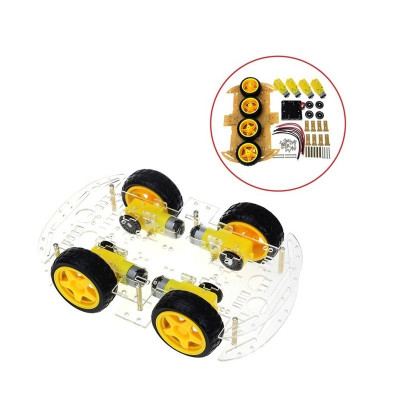

Smart Car 4WD chassis kit

Name: Smart Car 4WD chassis kit
SKU: 33200
Price: 60.20 RON
Availability: InStock
Rating: 5 (14 reviews)

4WD mechanical chassis for robot and autonomous car projects, delivered without electronics, includes 4 3-6V geared motors for good traction and torque, 4xAA battery holder for powering the motors, encoders on each wheel for speed measurement and precise control, easy-to-assemble and customizable acrylic construction.

60.20 RON Tax included

49.75 RON Tax excluded

(5/5) out of 14 total ratings
Read the reviews

1-2 zile

This product has a warranty of 2 years.

INTERNATIONAL DELIVERY
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.

FAST DISPATCH 24H
We ship from our stock within 24H

LOYALTY POINTS
You earn points with every order, worth 5%.

Mechanical chassis kit for a 4-wheeled robot car with gearbox. The set consists strictly of the parts necessary for its mechanical assembly and does not include any electronics. It uses geared motors that can be operated between 3 and 6VDC. It also includes a 4x AA battery holder that will supply the motors with the required operating voltage. The chosen microcontroller should be powered from a separate source to avoid interference caused by the motors' operation on the circuit.

It comes bundled with rotary encoders which, together with a proximity sensor, can detect the rotational speed of each wheel individually, thus allowing the car to be programmed to perform precise and autonomous actions.

Specifications:

Material: Acrylic

Wheels: 4

Motor supply voltage: 3 - 6VDC

Battery holder: 4AA

Contents:

2x Acrylic plates

4x Tires

4x 3-6V geared motors

1x 4AA battery holder

1x Motor wiring set

4x Encoders

8x Acrylic motor supports

6x 30mm hexagonal spacers

8x M3x30mm screws

16x M3x5mm screws

10x M3 nuts

* Some parts in the package (nuts and screws) may vary depending on the batch. We recommend having at least 4 additional M3 nuts on hand in addition to those included in the kit.
