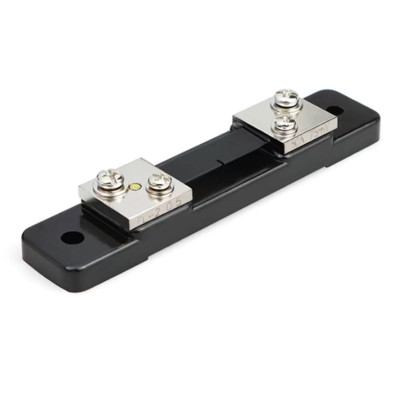

Shunt ammeter, 50A, 75mV, DC current
They are DC for accurate measurement of direct current up to 50A, with a standard drop of 75mV for easy reading with compatible ammeters. Robust painted metal construction with plastic insulation, exposed connections for quick mounting and safe contact. Suitable for electrical panels, DC sources, industrial applications and hobby projects.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
They are DC 50A with a voltage drop of 75mV, able to accurately and reliably measure current up to 50A in DC electrical systems. It is made of painted metal, with exposed connecting elements, which combines durability with performance, being ideal for a wide range of industrial, commercial and hobby applications.
Using a compatible ammeter to read the voltage drop across the shunt, the current can be calculated using the relationship I = V/R, where V is the voltage drop and R is the resistance of the shunt.
Specifications:
Guy: I'm DC
Material: Metal for conductive components and plastic for insulation and support
Color: Black and silver
Accuracy: Class 0.5
Nominal Current: 50A
Voltage Drop: 75mV
Dimensions: 115 x 25 x 2mm
Weight: 59g
Use:
Install the probe in series with the circuit where you want to measure the current, making sure that all connections are tight and secure.
If necessary, calibrate the meter to compensate for the 75mV voltage drop specific to this unit.
Use a compatible ammeter to read the voltage drop across the sun and calculate the current using the relationship I = V/R, where V is the voltage drop and R is the resistance of the sun.
