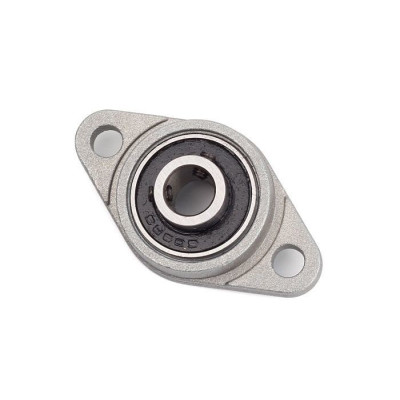

Sealed bearing KFL08
Suitable for axis guides with 8 mm threaded rods, it provides stable support and precise alignment in CNC, 3D printer or automation applications. It has an 8 mm internal diameter for quick mounting, robust zinc die-cast housing, encapsulated construction for protection against dust and wear, smooth operation with reduced vibrations.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The KFL08 pillow block bearing is a compact and reliable solution for guiding and supporting 8 mm shafts. It combines a self-aligning ball bearing insert with a robust die-cast zinc housing (zamak), providing smooth, quiet operation and precise alignment even in assemblies where the shaft is not perfectly coaxial. The oval flange with two holes allows quick, perpendicular mounting to the surface with just two M4 screws.
Thanks to its sealed construction, the bearing is protected against dust and contaminants, which extends its service life and reduces maintenance requirements. It is the ideal choice for 3D printers, CNC machines, automation systems, and DIY projects that use threaded rods or 8 mm shafts.
Main features:
Self-aligning ball bearing insert: compensates for small shaft coaxiality deviations.
Die-cast zinc housing, strong and dimensionally stable.
Sealed construction with protection against dust and dirt.
Smooth and quiet operation with reduced vibration.
Simple mounting via oval flange with 2 holes and M4 screws.
Ideal for 8 mm shafts and threaded rods.
Specifications:
Model: KFL08
Bore diameter (shaft): 8 mm
Bearing type: Self-aligning ball bearing insert
Housing material: Die-cast zinc (zamak)
Sealing: Sealed, dust protection
Total length (B): 48 mm
Hole spacing (A): 37 mm
Housing width (C): 27 mm
Mounting hole diameter (K): 4.8 mm (M4 screws)
Mounting screws: M4
Weight: 0.027 kg
Produs destinat utilizarii in proiecte electronice, automatizari, prototipare, educatie si cercetare.
Produsul trebuie utilizat numai conform specificatiilor tehnice mentionate in descriere si/sau in documentatia produsului.
Avertismente generale de siguranta:
Nu utilizati produsul la tensiuni, curenti sau temperaturi peste valorile specificate.
Montajul si conectarea trebuie realizate de persoane cu cunostinte tehnice minime in domeniul electric/electronic.
Evitati scurtcircuitele, inversarea polaritatii si conectarea gresita a alimentarii.
Nu lasati produsul alimentat nesupravegheat in timpul testelor.
Produsul nu este jucarie si nu este destinat copiilor.
Pentru modulele electronice, se recomanda utilizarea in carcase, panouri sau montaje protejate, dupa caz.
Identificare produs:
Denumirea produsului, codul/SKU-ul si caracteristicile tehnice sunt mentionate in pagina produsului si/sau pe eticheta ambalajului.
Producator / Importator / Distribuitor:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Website: www.sigmanortec.ro
Persoana responsabila in UE:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Documentatie si siguranta:
Pentru informatii suplimentare, fise tehnice, declaratii de conformitate sau instructiuni, ne puteti contacta la [email protected].
Reviews (6) - Review moderation
Am cumparat cativa pentru un cnc facut de mine si sunt multumit.
Produs conform pozelor si specificatiilor
ok
Excelenti pentru imprimante 3d. Dar sa nu uitati sa aliniati rulmentul altfel va crea rezonanta in tija filetata care va duce la viteza scazuta in axe.
Recomand
