Product images are for informational purposes only and may vary slightly depending on the batch and supplier. Product specifications and prices may be subject to change without notice. We do our best to provide accurate and complete product specifications, but they may not be completely accurate. If you encounter any such situation, please let us know.
The product is intended for specialists and requires qualified and authorized personnel. The product does not include assembly/use instructions . Putting the product into operation by unqualified persons leads to the loss of the warranty according to the Terms and Conditions on the site.
The specified technical parameters (current, power, etc.) represent maximum allowable values under ideal operating conditions. For safe use and optimal lifespan, it is recommended to operate the product continuously at no more than 50% of the specified maximum values.

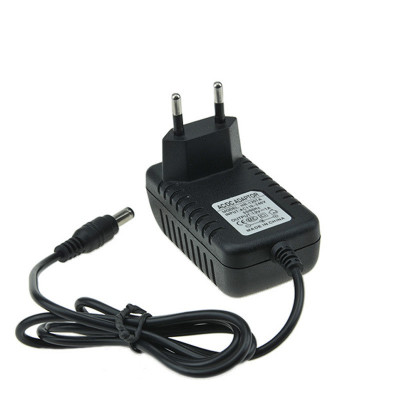

Power supply 12V 2A, 5.5x2.1 plug
Power supply for electronic projects, converts 220VAC to stable 12VDC, providing up to 2A for modules, LED strips or DIY equipment. It is equipped with a 5.5x2.1mm male plug for quick connection and wide compatibility, ideal for integration into technical assemblies where 12V power is required.
Shipping by Thursday 22 October
Buying this product earns you 2.27 RON in loyalty points.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The 220VAC to 12VDC 2A switching power supply is a high-quality power supply, designed for safe and long-lasting operation in electronic projects that require a 12V DC voltage. It connects directly to the 220VAC mains and provides 12VDC at the output, with a current of up to 2A, through a standard 5.5x2.1mm male plug, one of the most common DC connector formats in electronics.
The main features are the build quality, which makes it a reliable choice compared to generic power supplies, the switching operation, which makes it light and compact, without the heavy transformer of classic power supplies, and with better efficiency than them, direct conversion from 220VAC to 12VDC, output current of up to 2A, meaning a power of up to 24W, 5.5x2.1mm male plug compatible with DC female sockets of the same type, and plug-and-play connection, without additional wiring to the mains.
The power supply is compatible with Arduino Uno and Arduino Mega 2560 boards, which have a 5.5x2.1mm DC jack, as well as with 12V LED strips, 12V relay modules, fans, small pumps, DC motors, and other modules that accept 12VDC power through this type of connector.
Specifications:
Power supply type: Switching
Supply voltage: 220VAC
Output voltage: 12VDC
Output current: 2A
Maximum power: 24W
Connector: 5.5x2.1mm male
Outer connector diameter: 5.5mm
Inner connector diameter: 2.1mm
Usage:
Check that the powered equipment operates at 12VDC and has a compatible 5.5x2.1mm female connector.
Check that the current requirement of the circuit does not exceed 2A. For long-term operation, it is recommended to leave a reserve of about 20%, meaning a consumption of no more than 1.6A.
Before first use, check the polarity of the connector with a multimeter and compare it with the one required by the powered equipment.
With the power supply disconnected from the outlet, insert the 12V plug into the powered equipment.
Connect the power supply to the 220VAC outlet.
When disconnecting, first unplug the power supply from the outlet and only then remove the plug from the equipment.
In the case of Arduino boards, 12V is at the upper limit of the recommended range for the DC jack, and the regulator on the board may heat up if you power large loads from the 5V pin. For such loads, use a separate power supply.
Warning
The power supply connects to the 220VAC mains voltage, which is dangerous and can cause electric shock. Do not open the power supply housing, do not use it if the cable or housing is damaged, and do not expose it to moisture, water, or high temperatures. Make any modifications to the circuit only with the power supply unplugged. Keep the power supply out of reach of children.
- Adjustment Type
- Fixed
- Maximum Output Current
- 2 A
- Output Voltage
- 12VDC
- Output Voltage Type
- “DC” in Romanian can mean **“de ce”**, which translates to **“why”** in English.
Produs destinat utilizarii in proiecte electronice, automatizari, prototipare, educatie si cercetare.
Produsul trebuie utilizat numai conform specificatiilor tehnice mentionate in descriere si/sau in documentatia produsului.
Avertismente generale de siguranta:
Nu utilizati produsul la tensiuni, curenti sau temperaturi peste valorile specificate.
Montajul si conectarea trebuie realizate de persoane cu cunostinte tehnice minime in domeniul electric/electronic.
Evitati scurtcircuitele, inversarea polaritatii si conectarea gresita a alimentarii.
Nu lasati produsul alimentat nesupravegheat in timpul testelor.
Produsul nu este jucarie si nu este destinat copiilor.
Pentru modulele electronice, se recomanda utilizarea in carcase, panouri sau montaje protejate, dupa caz.
Identificare produs:
Denumirea produsului, codul/SKU-ul si caracteristicile tehnice sunt mentionate in pagina produsului si/sau pe eticheta ambalajului.
Producator / Importator / Distribuitor:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Website: www.sigmanortec.ro
Persoana responsabila in UE:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Documentatie si siguranta:
Pentru informatii suplimentare, fise tehnice, declaratii de conformitate sau instructiuni, ne puteti contacta la [email protected].
