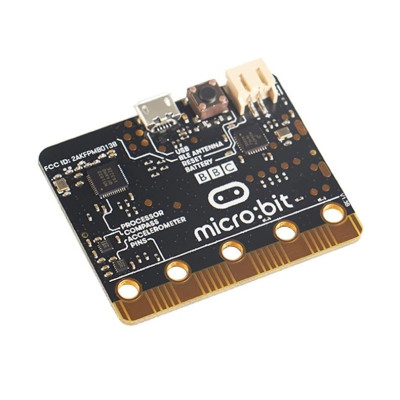

Micro:Bit BBC compatible development board, FZ3143
The Micro:Bit compatible development board is ideal for learning programming with the visual editor on Microbit.org, offers integrated sensors, 5x5 LED matrix and programmable buttons for interactive projects, allows Bluetooth communication for quick connection to devices, and expansion with external modules and crocodile cables is easy for experiments and prototyping.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Development board compatible with Micro:Bit (not the original version), ideal for learning programming due to the availability of the visual programming interface offered on the official website Microbit.org.
The board has a multitude of integrated sensors, LEDs and programmable buttons, as well as the ability to communicate via Bluetooth. External modules, RGB LEDs, etc. can be easily connected.
Characteristics:
- The availability of a wide range of sensors and modules
- Graphical code editor and ease of programming
- Ideal for beginners
- Integrated sensors and LEDs
- Bluetooth communication
- Compatibility with crocodile cables
Specifications:
Power supply: 5VDC through the MicroUSB plug or battery between 3 and 5VDC through the PH2.0 plug
Consumption: 30mA
Maximum peripheral consumption: 90mA
Processor: ARM Cortex M0, 32-bit
Microcontroller: N51822
LEDs: 25, 5x5
LED color: Red
Programmable buttons: 2
Reset button: 1
Accelerometer: 3 axes
Magnetometer: orientation detection, compass
Temperature sensor: -25 - 75 degrees C
GPIO Pins: 19
SPI Pins: 3
PWM pins: 19, 3 simultaneously
I2C Pins: 2
UART Pins: 2
ADC Pins: 6
Capacitive button pins: 3
