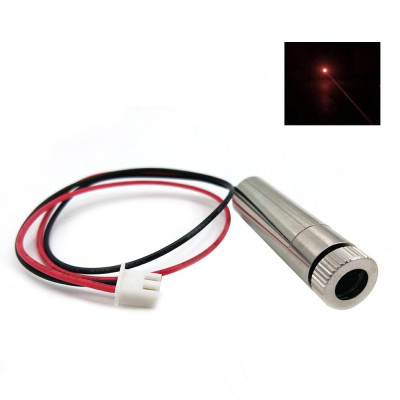

Laser diode module, 650nm, 250mW, spot, 3-5VDC
Adjustable focus laser module for generating a precise point, ideal for alignment, positioning and optoelectronic projects. Emits at 650nm with 200-250mW power, operates at 3.2-5VDC with consumption below 300mA, has ESD, reverse polarity and short circuit protection, compact 12x45mm housing with cable under 30cm.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Laser mode with adjustable focus. It transmits a point laser beam, focusable, in the 650nm spectrum. It offers antistatic, polarity and short-circuit protection.
Specifications:
Supply voltage: 3.2 - 5VDC
Wavelength: 650nm
Optical power: 200-250mW
Current: <300mAh
Projection shape: point
Dimensions mm: 12mm diameter x 45mm length
Cable length: <30cm, variable
Careful! This is a laser module with a high output power. Always use protective glasses when testing and using it!
Produs destinat utilizarii in proiecte electronice, automatizari, prototipare, educatie si cercetare.
Produsul trebuie utilizat numai conform specificatiilor tehnice mentionate in descriere si/sau in documentatia produsului.
Avertismente generale de siguranta:
Nu utilizati produsul la tensiuni, curenti sau temperaturi peste valorile specificate.
Montajul si conectarea trebuie realizate de persoane cu cunostinte tehnice minime in domeniul electric/electronic.
Evitati scurtcircuitele, inversarea polaritatii si conectarea gresita a alimentarii.
Nu lasati produsul alimentat nesupravegheat in timpul testelor.
Produsul nu este jucarie si nu este destinat copiilor.
Pentru modulele electronice, se recomanda utilizarea in carcase, panouri sau montaje protejate, dupa caz.
Identificare produs:
Denumirea produsului, codul/SKU-ul si caracteristicile tehnice sunt mentionate in pagina produsului si/sau pe eticheta ambalajului.
Producator / Importator / Distribuitor:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Website: www.sigmanortec.ro
Persoana responsabila in UE:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Documentatie si siguranta:
Pentru informatii suplimentare, fise tehnice, declaratii de conformitate sau instructiuni, ne puteti contacta la [email protected].
