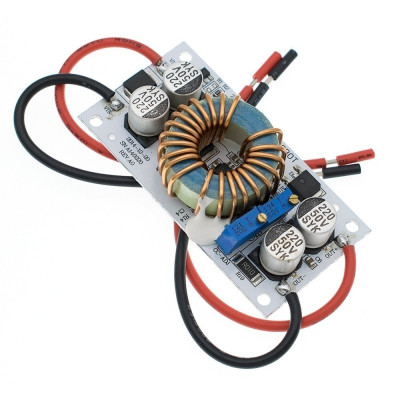

Boost module, CC, CV, 10A, 250W, 8.5-50VDC
DC-DC step-up power supply with voltage and current regulation, ideal for powering equipment and controlled battery charging. Offers CC and CV mode with continuous adjustment from potentiometers, power up to 250W and current up to 10A, operates at 8.5-48VDC and boosts output up to 50VDC, with high efficiency and overcurrent and reverse polarity protection.
Shipping by Wednesday 11 November
Buying this product earns you 1.20 RON in loyalty points.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
250W constant current and constant voltage (CC, CV) step-up voltage source module.
The voltage and current can be continuously adjusted through the two potentiometers.
Specifications:
Supply voltage: 8.5 - 48VDC
Output voltage: 10 - 50VDC
Maximum input current: 10A, from 8A improve cooling
Maximum output current: 10A, from 6A improve cooling
DC range: 0.2 - 8A
Frequency: 150KHz
Maximum conversion efficiency: 95%
Overcurrent protection: Yes, over 13A
Polarity protection: Yes, less than 5A
Dimensions mm: 69 x 35mm
Mounting holes: 3mm
Operation:
- Set the voltage potentiometer to the desired voltage
- Turn the current potentiometer clockwise until you hear a click from it. In this way, the minimum current is reached.
- Turn the current potentiometer until you reach the desired value.
- Supply voltage
- 8.5-48 V DC
- Dimensions
- 69 x 35 mm
- Output voltage
- 10-50 V DC
- Output current
- 10 A
- Maximum power
- 250 W
- Protections
- Overcurrent, reverse polarity
- Efficiency
- 95%
- Mounting hole diameter
- 3 mm
- Input current
- 10 A
- Operating mode
- CV (constant voltage) / CC (constant current)
- Switching frequency
- 150 kHz
