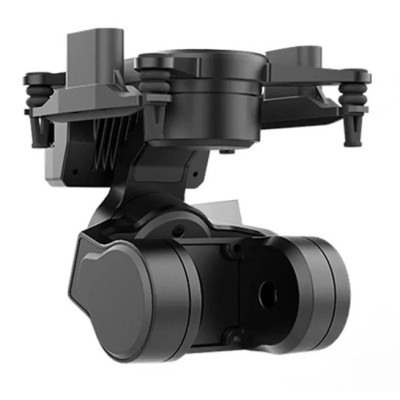

3-axis FPV gimbal, C-20T, for DJI O3
3-axis gimbal for DJI O3, provides precise and smooth stabilization for FPV flight, RC airplanes or RC cars on rough terrain, with great freedom of pitch, roll and yaw movement for cinematic shots and cockpit effect. Anti-vibration mount reduces shaking for clearer image, PWM or UART control and head tracking support with compatible goggles, vertical or inverted mounting for easy integration.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
C-20T gimbal, designed specifically for the DJI O3 camera.
This 3-axis gimbal ensures precise and smooth stabilization, whether you're flying your FPV drone, RC plane, or exploring rough terrain with your RC car.
With extensive movement capacity on the pitch, roll and yaw axes, the C-20T offers cinematic control and a realistic cockpit flight feel.
The integrated anti-vibration mount contributes to a clear and stable image, eliminating unwanted noise and shake, essential for a high-quality FPV experience. Easy to mount and compatible with the DJI O3 system, this gimbal is the ideal choice for RC flying and racing enthusiasts.
It can function as a head-tracking system (with compatible goggles), maximizing realism in FPV experiences, especially when integrated inside RC air models or cars.
Important: DJI O3 camera is not included.
Specifications:
Model: C-20T
Movement axes: 3
Compatibility: DJI O3
Dimensions: 50 × 46.5 × 53 mm
Weight: 46g
Operating voltage: 7–26 VDC
Power consumption: 1.5 W (static) / 14 W (peak)
Mounting method: Vertical or inverted installation
Camera Compatibility: 19mm wide FPV camera (including DJI O3)
Control interface: PWM / UART
Head Tracking Control: Compatible
Stabilization accuracy: ±0.005°
Controllable rotation range:
Pitch: -105° ~ +145°
Yaw: ±165°
Maximum control speed:
Pitch: ±1500°/s
Yaw: ±1500°/s
Package Included:
1x C-20T Gimbal
1x 8-pin cable
1x Camera housing
1x Screw set
Installation:
Installation requires disassembling the O3 camera to connect the gimbal. See video below.
