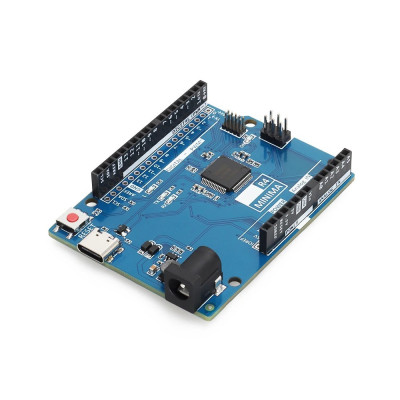

UNO R4 Minima Compatible Development Board
Ideal for rapid prototyping and upgrading from UNO R3 projects, it retains the classic format and pinout, runs at 5V with a wide 6-16V supply, uses an Arm Cortex M4 processor at 48MHz for superior performance, is easily programmed via USB-C and offers extensive connectivity via 12-bit DAC and SPI, I2C and CAN interfaces.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
UNO R4 Minima compatible development board. This is a development board compatible with the UNO format, maintaining the same dimensions and pin distribution as the UNO R3. It has an operating voltage of 5V and supports a wider input voltage, between 6-16V.
It features an Arm Cortex M4 processor, 48MHz clock frequency and USB-C programming port.
It includes a 12-bit DAC, digital I/O, PWM, ADC, SPI, I2C, and CAN interfaces, providing flexibility for complex projects.
It is optimized for IoT projects, with SWD port for efficient debugging.
Specifications:
Supply voltage: 6-16V
Operating voltage: 5V
Processor: Arm Cortex M4
Clock frequency: 48MHz
Programming port: USB-C (Type-C)
WiFi/Bluetooth: NO
LED Matrix: NO
Digital I/O interfaces: 14
PWM interfaces: 6
ADC interfaces: 6
DAC Interfaces: 1 (12bit)
SPI interfaces: 1
I2C interfaces: 1
CAN interfaces: 1
Pinout:
