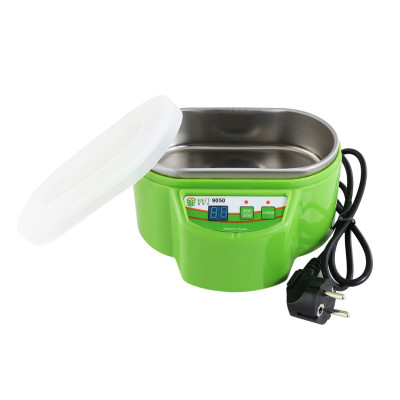

Ultrasonic cleaning device
Ultrasonic bath cleaning device for rapid removal of flux and impurities from PCBs, but also for jewelry or fine parts, uses cavitation at 40 kHz for deep cleaning, has a 0.5 l tank and compact bowl, selectable power 30 W or 50 W for adaptation to materials, automatic cycle of approximately 99 seconds for simple use.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Ultrasonic cleaning device ideal for cleaning electronic circuits, jewelry and other products that require deep cleaning.
This device uses the oscillating signal to produce the cavitation effect through which vapor bubbles are formed inside a liquid. These bubbles will remove all types of dirt from the components.
It can be successfully used to clean pcb boards after the tinning process and can even clean traces produced by the action of water on electronics.
Use:
Add the required amount of liquid (demineralized water plus detergent if necessary), usually about 2/3 of the tank's capacity. Make sure that the socket used is grounded. Turn on the device. Select the desired power between 30W and 50W. The device will turn itself off after 100 seconds.
Important! Do not leave liquid in the bowl after use to protect the bottom of the container from corrosive actions and do not start the device without liquid in the bowl. It is not recommended to use consecutively more than 2 times without a break for cooling.
Specifications:
Supply voltage: 220VAC
Power: 50W / 30W, selectable from the button
Frequency: 40KHz
Volume: 0.5L
Cleaning program: 99 seconds
Norm of use: Hobby, a break between washes is recommended for optimal cooling of the device.
Dimensions mm bathtub: 165 x 85 x 40mm
External mm dimensions: 175 x 95 x 50mm
Weight: 0.65 Kg
The cover can be made of plastic or metal depending on the batch
