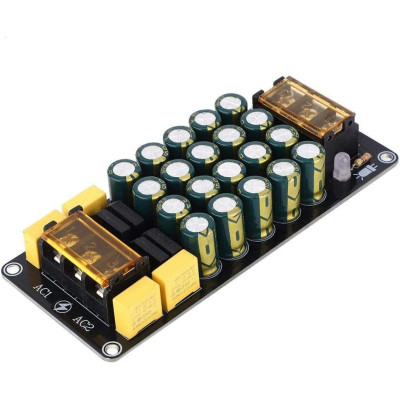

Power amplifier filter module, 12A, 1200W
Filter and rectifier module for dual power amplifiers, ideal for stable and clean power supply in audio projects. Supports up to 12A and 1200W, operates in single or dual configuration, has four rectifier bridges for high reliability and 20 LOW ESR capacitors for efficient filtering. Large terminals and protective caps allow safe connection at high currents.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Filtering and rectification module for dual power amplifier, with the ability to handle current up to 12A and with dual functionality. This electronic board is not only an efficient solution for voltage stabilization and filtering, but also a way to distribute clean and constant energy, being essential in projects that require a stable and high-fidelity power supply.
The board has large terminals and protective covers, designed to safely handle high voltages and currents, ensuring reliable performance. Stability and reliability are enhanced thanks to the four rectifier bridges, which provide a solid foundation for power amplification needs. In addition, with the help of the 20 high-performance capacitors with low ESR, optimal filtering and efficient power output are guaranteed, which is vital for audio applications where signal clarity and purity are critical.
Do not exceed the maximum specifications to prevent risks. It is recommended to keep the load below 80% of the maximum capacity of the power source for safe and efficient operation.
The module uses 25V LOW ESR capacitors, connected in series.
Specifications:
Maximum AC voltage: 50V x 2 ( do not exceed this voltage! )
Maximum Current: 6A x 2
Maximum power: 1200W
Working Modes: Supports single or double power input and output, convertible between them
Dimensions: 119 x 51 x 18mm
