Diaphragm Water/Air Pump, 6-12V, R385
zoom_out_map
chevron_left chevron_right

Product images are for informational purposes only and may vary slightly depending on the batch and supplier. Product specifications and prices may be subject to change without notice. We do our best to provide accurate and complete product specifications, but they may not be completely accurate. If you encounter any such situation, please let us know.

The product is intended for specialists and requires qualified and authorized personnel. The product does not include assembly/use instructions . Putting the product into operation by unqualified persons leads to the loss of the warranty according to the Terms and Conditions on the site.

The specified technical parameters (current, power, etc.) represent maximum allowable values under ideal operating conditions. For safe use and optimal lifespan, it is recommended to operate the product continuously at no more than 50% of the specified maximum values.

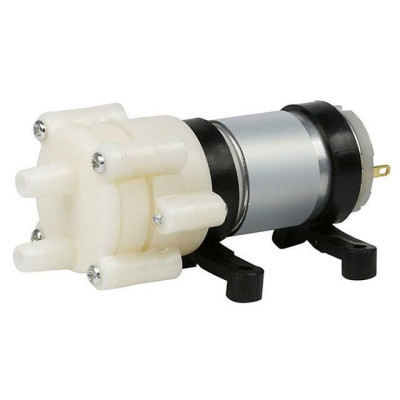

Diaphragm Water/Air Pump, 6-12V, R385

Diaphragm pump for water or air, ideal for DIY projects, cooling, dosing and micro-installations. It operates at 6-12VDC, with the voltage you can easily adjust the flow rate of approximately 1.5-2 L/min, it has low noise and can suck up to 2 m, lift up to 3 m. Includes rubber mounts to reduce vibrations.

5.62 € Tax included

4.65 € Tax excluded

(4/5) out of 8 total ratings
Read the reviews
1-2 zile
check In Stoc

Shipping by Thursday 27 August

Close

This product has a warranty of 2 years.

INTERNATIONAL DELIVERY
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
FAST DISPATCH 24H
We ship from our stock within 24H
LOYALTY POINTS
You earn points with every order, worth 5%.

The pump can be used for both water and air, depending on the need and the project. The pump produces a fairly low operating sound level. The mode of operation is through the diaphragm.

Depending on the applied voltage, the flow rate increases or decreases.

The pump comes with rubber vibration dampers (supports).

Pay attention to the polarity of the product.

Specifications:

Supply voltage: 6 - 12VDC

Recommended voltage: 9V, 1A

Operating power: 6W/H

Approximate flow: 1.5 - 2L / Min

Maximum suction level difference: 2 meters high

Maximum exit level difference: 3 meters high

Liquid pressure on inlet: 3 Bar (0.3Mpa or 43.5Psi)

Lifetime: up to 2500 hours

Maximum liquid temperature: <80 degrees C

Connection diameter: 6mm input - 9mm output

Weight: 110g

33554

Produs destinat utilizarii in proiecte electronice, automatizari, prototipare, educatie si cercetare.

Produsul trebuie utilizat numai conform specificatiilor tehnice mentionate in descriere si/sau in documentatia produsului.

Avertismente generale de siguranta:

Nu utilizati produsul la tensiuni, curenti sau temperaturi peste valorile specificate.

Montajul si conectarea trebuie realizate de persoane cu cunostinte tehnice minime in domeniul electric/electronic.

Evitati scurtcircuitele, inversarea polaritatii si conectarea gresita a alimentarii.

Nu lasati produsul alimentat nesupravegheat in timpul testelor.

Produsul nu este jucarie si nu este destinat copiilor.

Pentru modulele electronice, se recomanda utilizarea in carcase, panouri sau montaje protejate, dupa caz.

Identificare produs:

Denumirea produsului, codul/SKU-ul si caracteristicile tehnice sunt mentionate in pagina produsului si/sau pe eticheta ambalajului.

Producator / Importator / Distribuitor:

Sigmanortec S.R.L.

Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania

E-mail: [email protected]

Website: www.sigmanortec.ro

Persoana responsabila in UE:

Sigmanortec S.R.L.

Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania

E-mail: [email protected]

Documentatie si siguranta:

Pentru informatii suplimentare, fise tehnice, declaratii de conformitate sau instructiuni, ne puteti contacta la [email protected].
