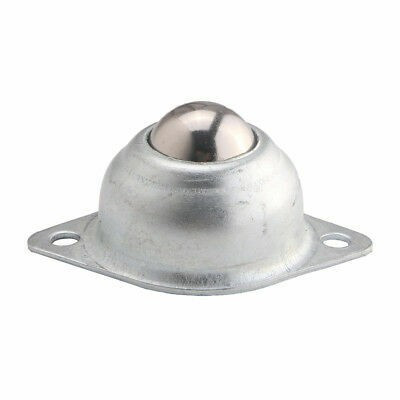

Ball mount CY-15A, 27mm, omnidirectional
Omnidirectional support with encapsulated ball, ideal as a front wheel for robots and for easy guidance of loads on tables, conveyors or platforms. Provides precise movement in any direction, smooth and silent operation thanks to support bearings, steel construction with hardened and galvanized cup for corrosion resistance, quick assembly on flat surfaces.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Encapsulated ball with support usually used as the front wheel for robots.
The CY-15A transfer unit is designed to facilitate the movement and positioning of loads with precision and minimal effort, in any direction.
It is made of durable carbon steel, with a heavy-duty steel load ball, which ensures smooth and quiet operation even in high-precision applications. The units are ready to install and are suitable for use in clean rooms only, given that the running surface also ensures movement.
It features a 360° rotating mounting plate attached to a dual wheel system with individual support bearings, guaranteeing a smooth and durable glide. The ball support cup is hardened and zinc plated, providing corrosion resistance and extended service life.
Specifications:
Model: CY-15A
Material: Stainless steel
Surface treatment: Zinc plating
Length: 50mm
Width: 32 mm
Height: 21 mm
Mounting hole pitch: 40 mm
Mounting hole diameter: 4 mm
Ball diameter: 15.875 mm
Load per unit: 10 kg (max. 20 kg)
Unit weight: 43 g
Dimensions:
Use:
Secure the CY-15A unit to flat surfaces using standard screws through the two mounting holes. It is recommended for workbenches, conveyors, handling platforms, mobile shelving or industrial furniture. Ensure a clean surface under the ball to prevent jamming and maintain smooth rotation. Periodically check the mounting and clean the contact surface to extend the service life.
