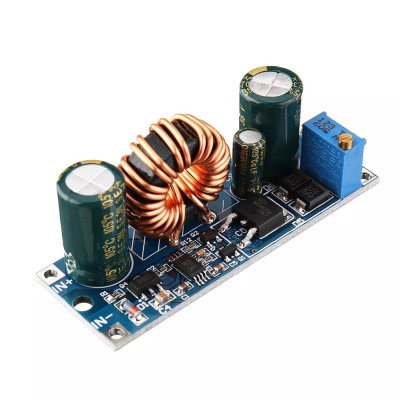

Automatic power supply module, step-down, 5.5-30V to 0-30V, 30W
Automatic step-up-down DC-DC converter for stable power supplies, maintains the set voltage regardless of input variations, for example 12V constant at input between 5.5 and 30V. Offers adjustable output 0.5-30V, up to 30W and 3A in continuous mode, efficiency approx. 88% at 180KHz, rectification with double Schottky diodes SS56 and short-circuit protection.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The automatic voltage source module that works both as a voltage raiser and as a voltage reducer, in the 0.5-30VDC range.
It uses double Schottky diodes SS56, 60V 5A for rectification and has the advantage of keeping the output voltage regardless of the input voltage variations. For example, once the voltage is set to 12VDC, it will remain constant for an input voltage anywhere between 5.5 and 30VDC.
Specifications:
Supply voltage: 5.5 - 30VDC, recommended over 7V
Output voltage: 0.5 - 30VDC, continuously adjustable
Output current: up to 3A long term, up to 4A with forced cooling
Output power: Up to 30W with natural dissipation, up to 50W with forced cooling
Conversion efficiency: 88% approximately
Frequency: 180KHz
Short-circuit protection: Yes, auto-stop with automatic restart upon re-supply
Low voltage protection: Yes, auto shutdown with automatic restart upon resupply
Polarity protection: NO (make sure the polarity is correct
Dimensions mm: 56 x 20 x 21mm
- tension
- AD
- Supply Voltage
- 5
- Maximum Input Voltage
- 30
- Minimum Output Voltage
- 1
- Maximum Output Voltage
- 30
- Source Type
- Automatic
descend
high - Current Adjustment
- Not
- Voltage Adjustment
- Yes
- Adjustment Type
- Variable
- Maximum Output Current
- 4
