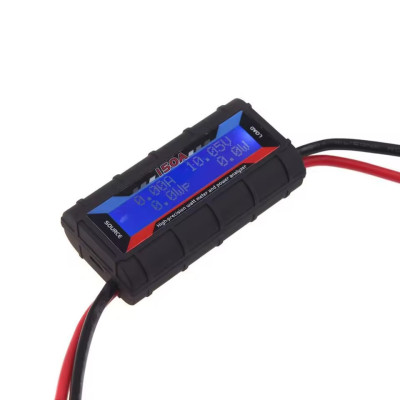

Power Analyzer Module with LCD Display and Housing, 0-60V, 150A
DC power analyzer with digital wattmeter for real-time monitoring of voltage, current and power in 0-60V systems, ideal for motors, solar panels and other consumers. The LCD display with backlight ensures clear reading, supports measurement up to 150A, and the durable ABS housing offers protection and easy mounting in technical applications.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The electrical parameters analyzer module includes a digital wattmeter function and allows the measurement of electrical parameters such as voltage, current and power consumption. It comes in a durable ABS plastic housing and is ideal for applications such as monitoring motors, solar panels or other electrical equipment.
The backlit LCD display allows easy reading of values, even in low light conditions. It can be integrated into DC power systems to check electrical performance in real time.
It can measure between 0 and 60VDC. If a voltage above 4.8V is measured, the power supply is made directly from the SOURCE wires. If the measurement below 4.8V is desired, it is necessary to provide a minimum 5VDC power supply voltage on the secondary (Auxiliary) pins.
It is recommended to keep the current below the 130A limit for proper operation and longer module life.
Specifications:
Supply voltage: 4.8 - 60VDC
Measured Voltage: 0–60V DC
Housing material: Durable ABS plastic
Measurable current range: Up to 150A, recommended below 130A
Displayed data: Voltage (V), Current (A), Power (W), Energy (Wh), etc.
Screen: LCD with backlight
Dimensions: 85 x 42 x 25mm
Use:
Connect the input ( Source ) wires to the DC power source.
Connect the output wires ( Load ) to the electrical consumer (motor, lamp, solar panel, etc.).
The display will show in real time:
- Input voltage
- Current consumed
- Active power (W)
- Accumulated energy consumed (Wh)
Connections:
Package Contents:
1 x 150A digital wattmeter with LCD screen
